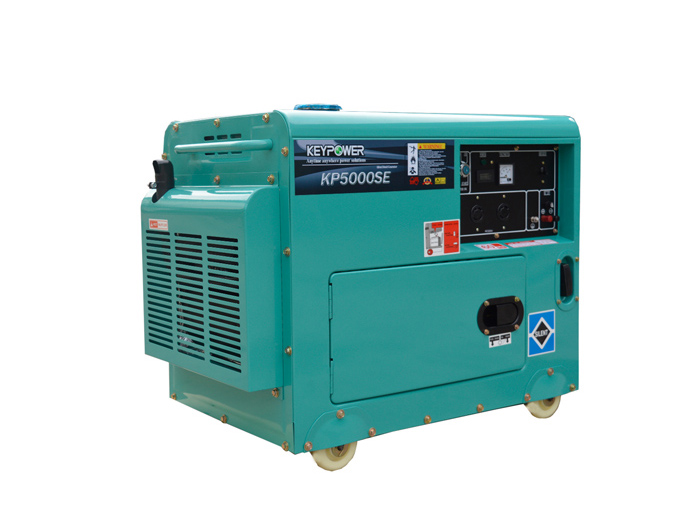

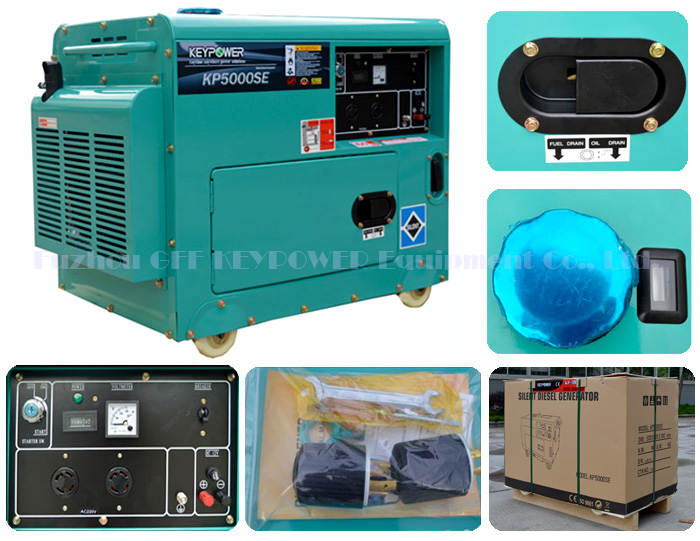

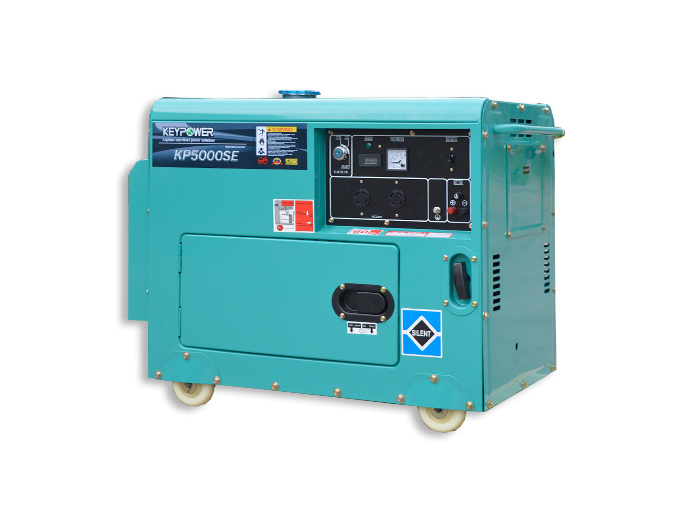

5000W Air-cooled Generator Set
none
  • Detail
  • Order


ModelKP-5000SEKP-5000SE-3KP-5000SEKP-5000SE-3
Ac frequency(Hz)50506060
PhaseSingle PhaseThree phase Single PhaseThree phase
TypeBrushless,self-exciting,2-polesBrushless,self-exciting,2-poles
Ac output voltage(V)100v-240v200v-450v110/220v-240v208/240v-380/460v
Cont.ac output(KW)4.54.555
Max.ac output(KW)555.55.5
Dc output(V/A)12/8.312/8.312/8.312/8.3
InsulationFFFF
Power factor(cos )10.810.8
Engine ModelKP186FAEKP186FAEKP186FAEKP186FAE
Engine CharacterSingle-cylinder 4-stroke air-cooled injection dieselSingle-cylinder 4-stroke air-cooled injection diesel
Displacement(cc)418418518518
Engine Speed(rpm)3000300036003600
Starting system recoil/electricrecoil/electricrecoil or recoil/electricrecoil or recoil/electric
Max.power output(hp)8899
Fuel tank capacity(L)15151515
Contines work(h)10109.59.5
Operating noise level (at 7m)70707272
Dim(1xwxh)(mm)940*520*740940*520*740940*520*740940*520*740
Net weight(kg)165165165165
