KEYPOWER 720kW / 900kVA Generador diesel alimentado por Cummins KTA38-G2B con Stamford HC1634H
El generador de la serie Cummins KEYPOWER impulsado por Dongfeng / Chongqing Cummins, disfruta de las características de alta confiabilidad, fácil mantenimiento, largas horas de funcionamiento continuo e ideal para puertos, ferrocarriles, industria y minería. Como el mayor inversor extranjero en la industria de motores de China, Cummin era propietario de Dongfeng Cummin Engine Co, .LTD que produce principalmente series B, C, L y Chongqing Cummins Engine Co, .LTD que produce principalmente series M, N, K de acuerdo con Cummins Estándares globales de calidad en China.
  • Detail
  • Order

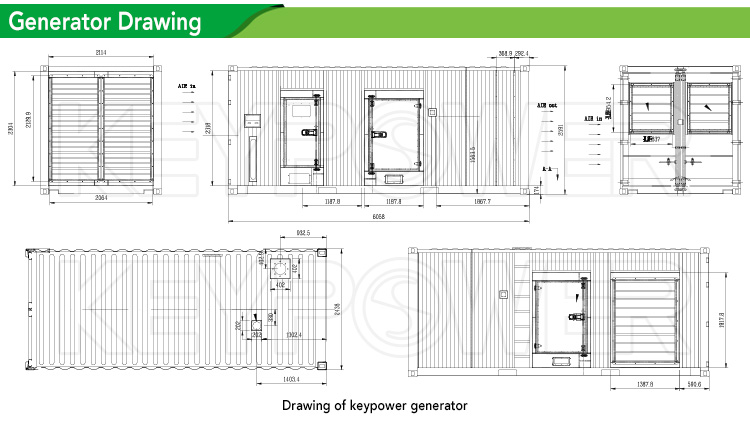

900 kw generator 06.jpg


Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified

 Certifications generator .jpg




Genset specs:
Engine Brands: CumminsPerkinsLovolDeutzDoosanMitsubishiKubotaYanmar or other reliable Chinese engines such as Fawde and Laidong.

Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

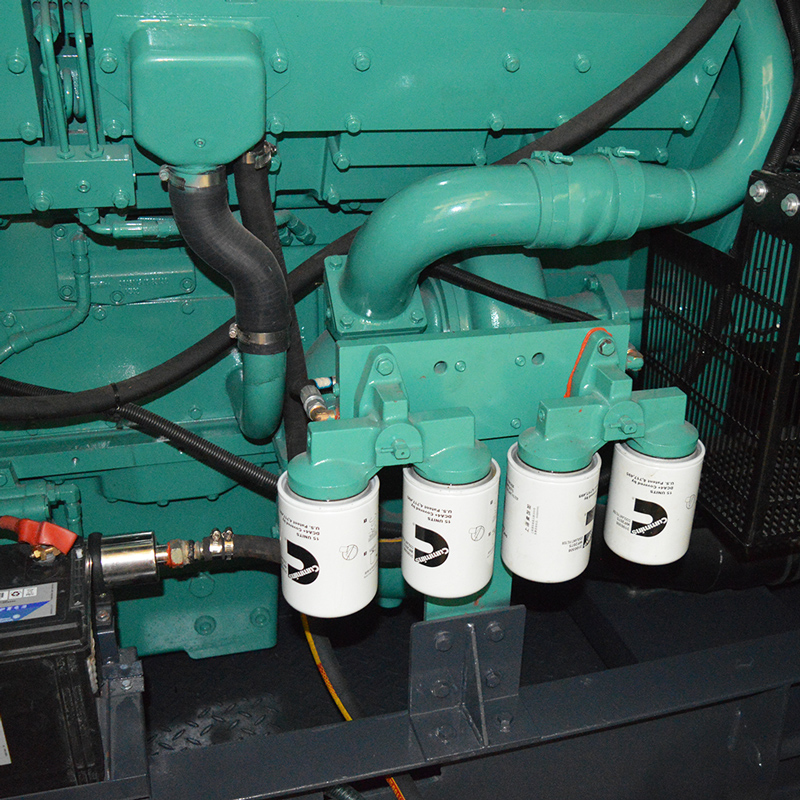

 Cummins QSK.jpg

  .jpg
Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Keypower


generator Controllers.jpg



THE PANEL IS PROVIDED WITH:
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
MCB of suitable rating with overload and short-circuit protection
Optional with AMF control panel or with ATS (automatic transfer switch)



Packing:
Wooden packaging, Carton packaging, PE film with hard paper corner protector




Applications:
With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.


KEYPOWER Projects 2018.12


 we are keypower

FAQ For Your Reference

1. Q: What is your MOQ of this item?

    A: 20FT contanier of mixed models



2. Q: What is your payment terms?

    A: Price is based on FCL sale: T/T, L/C, D/P, O/A



3. Q: What is the lead time?

    A: 25-45 workings days



4. Q: Where is your port of loading?

  A: Fuzhou, China.



5. Q: Can I use my own brand name?

  A: Yes, OEM and ODM are both supported.



6. Q: Your annual production capactiy?

Water-Cooled Genset

3,000 units

Air-Cooled Genset

100,000 units

Load Bank

500 units

7. Q: Available colors?

    A: White, Blue, Red, Green, Yellow, Gray



8. Q: Which markets have you exported before?

    A: Southeast Asia, the Middle East, Africa, Europe, North and South America, Oceania.



9. Q: Any certifications for your gensets?

    A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.



10. Q: How is your packaging?

      A: Stretching film as standard, plywood crate is optional



11. Q: The valid period of the offer?

      A: 30 DAYS
