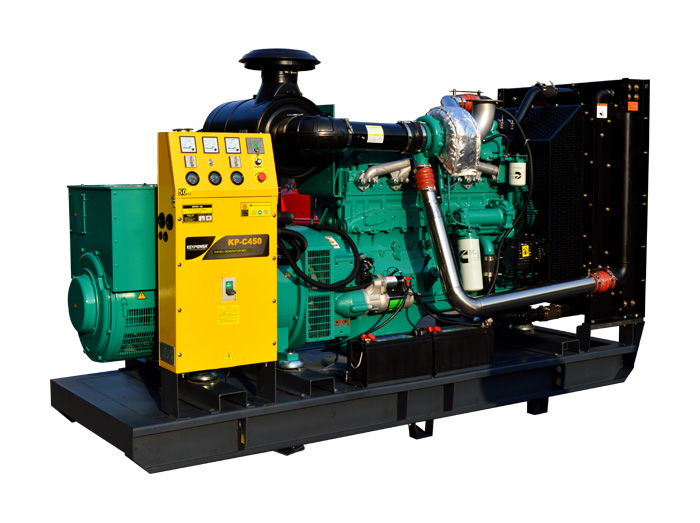

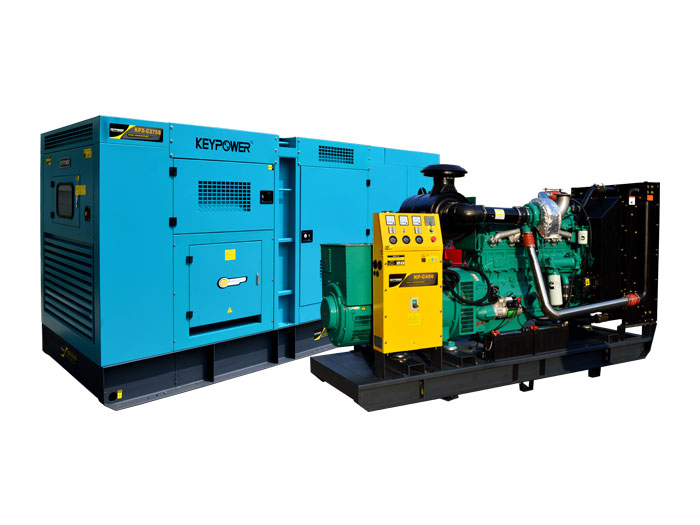

Keypower Cummins Diesel Generators 60Hz
KEYPOWER Cummins Series generator powered by Dongfeng/Chongqing Cummins, it enjoys the features of high reliability, easy maintenance, long continuous running hours and ideal for port, railway, indust
none
  • Detail
  • Order


DIESEL GENERATOR SPECIFICATIONS
1. Powered by reliable engines
2. Branded alternator

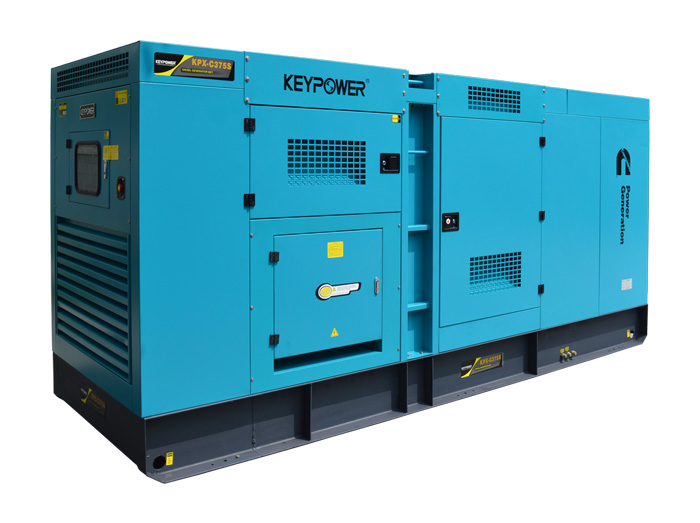

3. Open type, silent type or super silent type generator
4. ISO, CE certified

GENERATOR SPECS:
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz

ENGINE:
Brands: Cummins, Perkins, Lovol, Deutz, Doosan, Mitsubishi, Kubota, Yanmar or other reliable Chinese engines such as Fawde and Laidong.
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

ALTERNATOR:

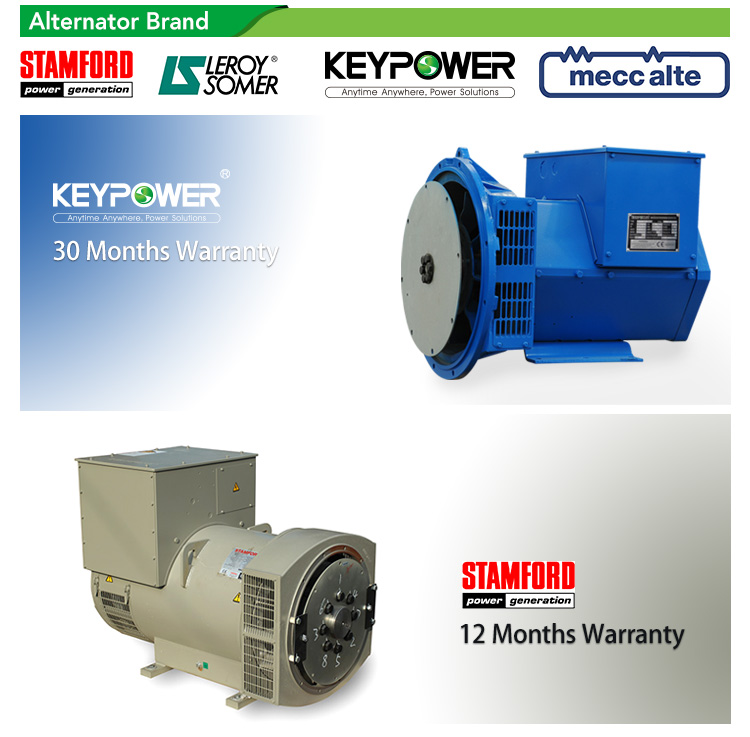

Brands: Stamford, Leroy Somer, Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23

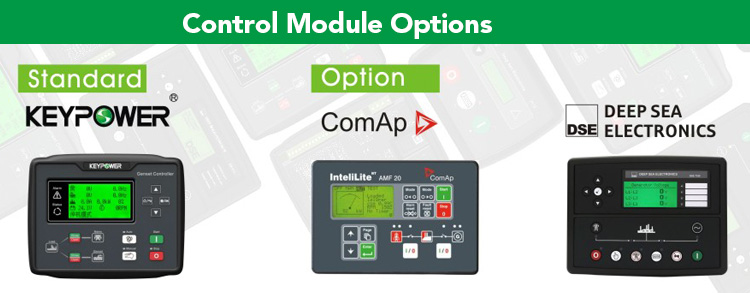

Control panel: Deepsea, ComAp, Keypower

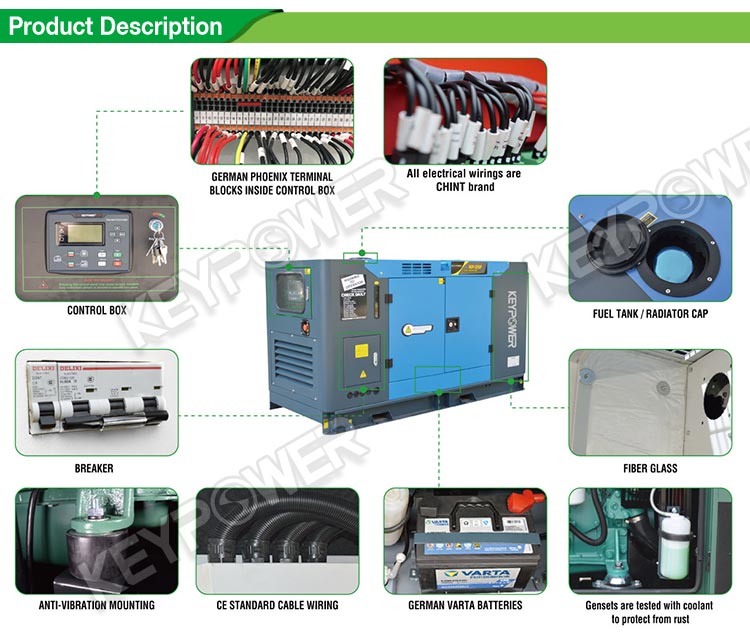

THE PANEL IS PROVIDED WITH:
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
MCB of suitable rating with overload and short-circuit protection
Optional with AMF control panel or with ATS (automatic transfer switch)

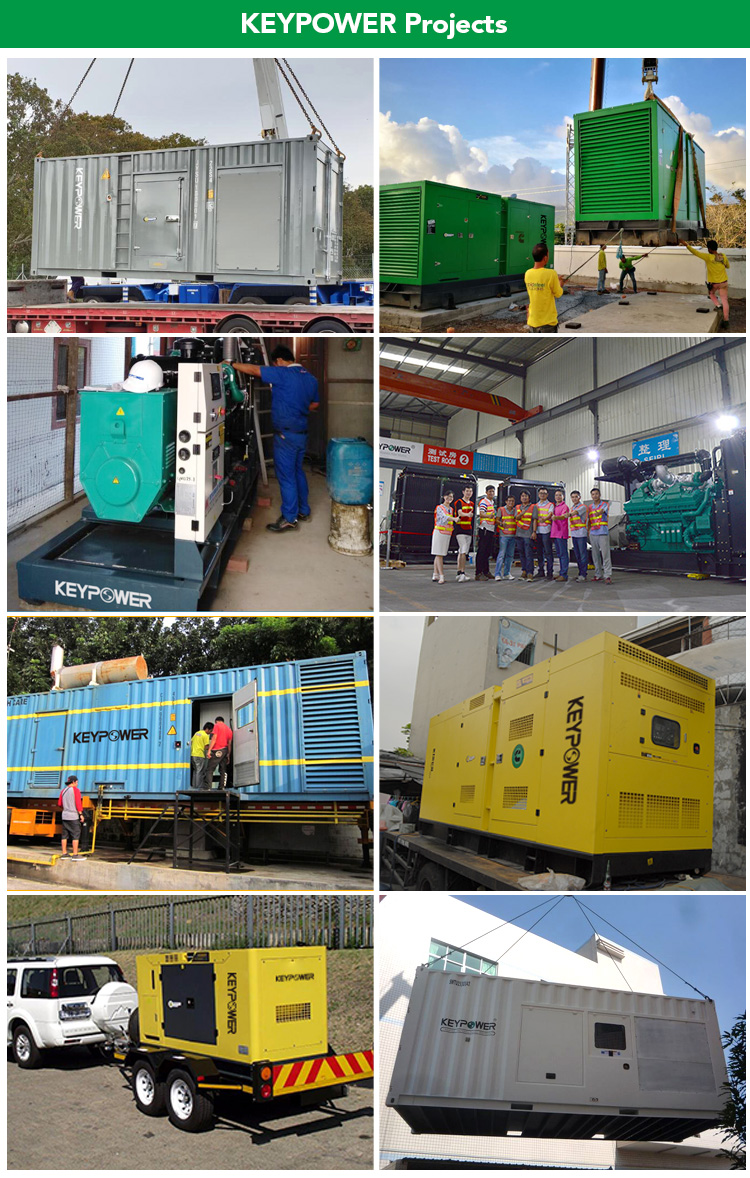

APPLICATIONS:
With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.

ANY QUESTION, PLEASE CONTACT US DIRECTLY.



Genset Model127/220V 3Phase 4 Wires  60Hz COSφ=0.8Parameters of  CUMMINS  Diesel Engine  1800rpm
Standby PowerPrime Power

Maximum Current

(A)

Engine ModelCyl.

Displacement

(L)

Comsumption

(Full Load)

(L/h)

KVAKWKVAKW
KP333326.4302487 4B3.9-G14L3.96.9
KP333326.4302487 4B3.9-G24L3.96.9
KP5050404536131 4BT3.9-G14L3.910.2
KP5050404536131 4BT3.9-G24L3.910.2
KP5555445040144 4BTA3.9-G24L3.911
KP7070566552184 4BTA3.9-G24L3.913.4
KP7575607056197 4BTA3.9-G24L3.914.4
KP1101108810080289 6BT5.9-G16L5.923.6
KP1201209611088315 6BT5.9-G26L5.926
KP145145116131105381 6BTA5.9-G26L5.931
KP165165132150120433 6BTAA5.9-G26L5.933
KP190190152175140499 6CTA8.3-G26L8.338.5
KP220220176200160577 6CTA8.3-G26L8.344
KP250250200225180656 6CTAA8.3-G26L8.349.9
KP275275220722 6LTAA8.9-G26L8.953
KP275275220250200722 NT855-GA6L1453.4
KP330330264300240397 QSM11-G16L10.869
KP343343275313250900 NTA855-G16L1474
KP375375300343275984 NTA855-G1B6L1479.7
KP375375300343275984 NTA855-G26L1479.5
KP400400320350280505 QSM11-G26L10.880
KP4384383503933151149 NTA855-G36L1485
KP5005004004383501312 KTA19-G26L18.998
KP5505504405004001443 KTA19-G36L18.9111
KP6256255005604501640 KTA19-G3A6L18.9120
KP6256255005604501640 KTA19-G46L18.9120
KP6606605285884701732 KTAA19-G56L18.9134
KP7507506001968 KTAA19-G6A6L18.9140
KP7507506001968 KTAA19-G76L18.9141
KP8508506807756202231 KTA38-G12V37.8154
KP100010008009007202624 KTA38-G212V37.8204
KP1100110088010008002887 KTA38-G2A12V37.8225
KP1200120096010758603149 KTA38-G412V37.8234
KP12501250100011259003280 KTA38-G412V37.8245
KP13201320105612009603464 QSK38-G512V37.7262
KP1375137511003609 KTA38-G912V37.8276
KP150015001200137511003937 KTA50-G316V50.3291
KP170517051364152512404475 KTA50-G916V50.3310
