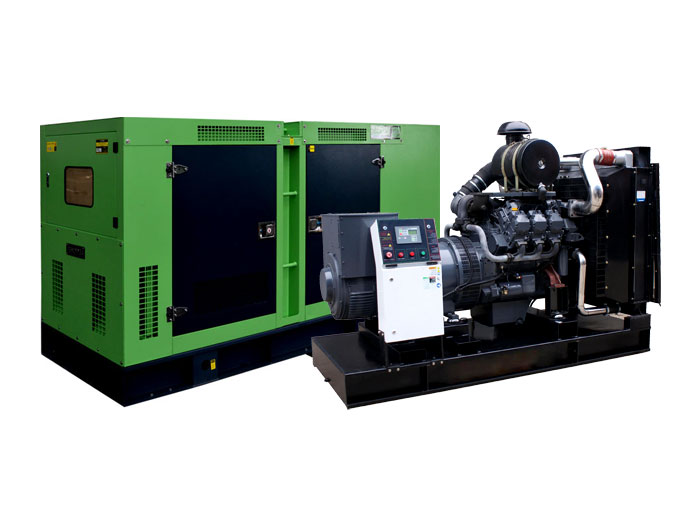

Keypower Deutz Diesel Generators 50Hz
KEYPOWER DEUTZ series generator power by DEUTZ engine,which fuatures heavy duty,offers compact design, space-saving engine.durability,low noise and exhaust emissions,extremely economical fuel consumpt
none
  • Detail
  • Order

ENGINE:
Brands: Cummins, Perkins, Lovol, Deutz, Doosan, Mitsubishi, Kubota, Yanmar or other reliable Chinese engines such as Fawde and Laidong.
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

ALTERNATOR:
Brands: Stamford, Leroy Somer, Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Keypower

THE PANEL IS PROVIDED WITH:
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
MCB of suitable rating with overload and short-circuit protection
Optional with AMF control panel or with ATS (automatic transfer switch)

APPLICATIONS:
With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.

ANY QUESTION, PLEASE CONTACT US DIRECTLY.

Genset Model400/230V 3Phase 4 Wires  50Hz COSφ=0.8Parameters of  DEUTZ  Diesel Engine 1500rpm
Standby PowerPrime Power

Maximum Current

(A)

Engine ModelCyl.

Displacement

(L)

Comsumption

(Full Load)

(L/h)

KVAKWKVAKW
KP353528312551 D226B-3D3L3.126
KP505040453672 TD226B-3D3L3.129.8
KP666653604898 TD226B-4D4L4.1613
KP9494738568144 TD226B-6D6L6.2418
KP138138110125100199 TDB226B-6D6L6.2426.8
KP165165132150120238 TBD226B-6D56L6.2432.2
KP172172138156125248 WD615.64D-156L9.729
KP220220176200160318 WD615.68D-156L9.737
KP656552604894 BF4M20124L4.04 16.9
KP80806472.558115 BF4M2012C4L4.04 16.5
KP1101108810080159 BF4M1013EC4L4.76 22.1
KP152152114130104209 BF4M1013FC4L4.76 27.2
KP165165132150120253 BF6M1013EC6L7.15 32
KP206206165188150289 BF6M1013FC-G26L7.15 39.4
KP220220176200160318 BF6M1013FC-G36L7.15 42.8
KP253253202230184361 BF6M1015-LA GA6L11.91 50.3
KP275275220250200397 BF6M1015C-LA G1A6L11.91 53
KP313313250288230452 BF6M1015C-LA G2A6L11.91 61.1
KP340340272313250491 BF6M1015C-LA G3A6L11.91 67.4
KP375375300350280541 BF6M1015C-LA G46L11.91 74.175
KP400400320375300577 BF6M1015CP-LA G6L11.91 84
KP460460370425340664 BF8M1015C-LA G1A8L15.87 93.3
KP500500400450360722 BF8M1015C-LA G28L15.87 100.2
KP500500400450360722 BF8M1015CP-LA G1A8L15.87 105.7
KP550550440500400794 BF8M1015CP-LA G28L15.87 118.2
KP605605487550440866 BF8M1015CP-LA G48L15.87 134
KP644644515585468902 BF8M1015CP-LA G58L15.87 149.3
